Model Number : YLS005X-TXXXYYY

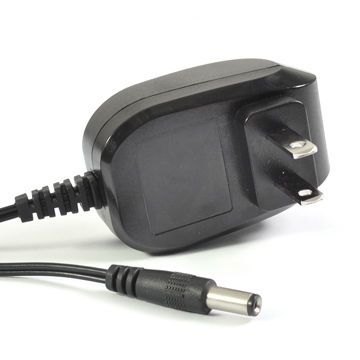

AC/DC switching power supply provides 0 to 5W of continuous output power
Wide input : 100 to 240V AC, 47 to 63Hz
Output : 3 to 24V, current is 1.0A for DC cord output type (maximum)
Efficiency : (EC) 278/2009
Size : (L x W x H): 62 x 39 x 32mm
Weight : 65 g
Working Environment :
Operating temperature : 0 to 40 degrees Celsius
Humidity: 10 to 90% RH
Insulation class: Class II
Safety Standard:UL60950-1, UL60065, UL1310
|
